Single-phose rack gomo rinoshanda harisic filter
Tsvaga iyo yakakwira-mhando isina-chikamu-chikamu-chikamu chegomo inoshanda Iyi mhinduro yekutsvaira kubva kuGiya inotsanangudza zvakanaka uye kuvimbika. Shopu ikozvino uye simbisa yako system!
Iyo imwe-chikamu-chikamu chekadhi yegomo inoshanda Kushandisa DPLLI + CPLD DICLL TRAENT CORE uye YAKABUDA KUPEDZESA ALGORITS, Iyi Rack-YAKAITWA AHF DZINOGARA DZINOGONESA ZVINOGONESA ZVINOGONESESA ZVINOGONESA KUTI UCHENJERI Dhizaini yayo Modular inobvumira kuti ishanduro yekuchinja uye yakareruka yekuchengetedza. Iyo 25A yakarongedzwa zvazvino basa uye compact 220mm x 330mm x 160mm (DWH) zviyero zvinoita kuti ive yakakodzera kuyamwa kwekubatanidza mune dzakasiyana siyana. Kumanikidzwa kutonhora kwemhepo kunoita kuti kuvimbika kuvimbika kuri pasi pemamiriro ezvinhu ekuda. Iyi-imwe-phase rack gomo inoshanda
For mod tsanangudzo:
| GY | Ahf | 0.22 | 25a | / | 2l | R |
| Enterprise kodhi | Active Harmonic Filter | Voltage level 0.22: 220V |
Rated Capacity (kvar) 25a | 2l: Imwe-chikamu | R: Rack Gomo |
Zvimiro:
● Shandisa DPLLI + CPLD Tese Dhijitari Control Core, matatu-level Topology Tekinoroji, Advanced Kuwanikwa Algorithm uye PWM Control Trategy Kuwana Kubhadharwa Kwechokwadi kweHarmonic Yazvino.
● Kutora modular dhizaini, iyo inofambisa yakaenzana yekubatanidza module yakawanda, inotora nzvimbo diki uye iri nyore kuchengetedza.
● Kugadzirwa kwechimiro kwemweya wakazvimirira madhiri uye warechi akazvimirira anosimbisa kushanda kwakasimba kwemidziyo.
.
● Iyo Harmonic firiting rate yakakwira. Kana kugona kuchitendera, iyo Harmonic ikozvino kuwanda kweiyo rate inogona kuve yakakwira se 95%. Seta 100% yazvino kudzikisira kuburitsa kuti ive nechokwadi chekutenderera kwenguva refu yekushanda kwemidziyo.
Zvishandiso:
Imwe-phose rack gomo inoshanda
● Data nzvimbo uye server makamuri:Kuchengetedza Kunaka IT zvishandiso kubva kuHarmonic kukanganisa, kunoita kuti utendeke data uye system kumusoro.
● Zvivakwa zvekurapa:Kupa simba rakagadzikana kune zviitiko zvekurapa zvekurapa zvinoshanda pane imwe-chikamu-chikamu, kuchengetedza murwere kuchengetedza murwere.
● Telecommunication Equipment:Kuderedza kukanganiswa kweHarmonic muTelecompunication Systems, Kuona kutaurirana kwakajeka uye kwakavimbika.
● Maindasitiri ekudzora masisitimu:Kuvandudza mashandiro uye kuvimbika kwechikamu chimwe-chikamu maindasitiri ekudzora masisitimu nekuderedza kusawirirana neHarmonic kukanganisa.
Imwe-phose rack gomo inoshanda
Technical parameter:
| 220V Series | 380V Series | 500V Series | 690V Series | ||
| Altitude | <2000m, pamusoro 2000m, funga maererano neGB / T3859.2 | ||||
| Ambient tembiricha | -20 ~ + 50 ℃ | ||||
| Hunyoro Hunyoro | ≤90%, hapana concensation pane iyo nzvimbo kana iyo mwedzi madiki tembiricha iri 25 ℃ | ||||
| Kusvibisa level | Level iii pazasi | ||||
| Inoshanda voltage | Ac220V ± 20% | Ac380V ± 20% | Ac500v】 20% | Ac690V ± 20% | |
| Kushanda frequency | 50hz ± 5% | ||||
| Muripo wazvino | 25a | 25/50/75/100 / 150a | 100a | 100a | |
| Grid chimiro | L / n | 3P3W / 3P4W | 3P3W / 3P4W | 3P3W / 3P4W | |
| Nhamba yezvikamu yakabatana mukufananidza | Ulimited | ||||
| Kuwedzeredza Kwemuchina Kubudirira | ≥97% | ||||
| Grid chimiro | 32khz | 16khz | 12.8khz | 12.8khz | |
| Kuroverwa Range | 2 ~ 50times, imwe chete yekushambadzira chiyero chinogadziriswa | ||||
| Sarudzo yekusarudzwa | Simba Resimba | Inoshanda simba, simba rinogadzirisa + asymmetry | |||
| Simba Resimba Rwiyo rwekutsiva | ≥95% | > 92% | |||
| Neutral Kucheka kugona | Neutral mutsetse wekushandura kugona ndeye 3 times ayo ekuchinjika kwechikamu chekugona | ||||
| Nguva yakazara yekupindura | <10ms | <40ms | <40ms | <40ms | |
| Ruzha | ≤60db | ≤60db | ≤65DB | ≤65DB | |
| Dzora nzira | 2-Nzira yeRs 485 interface (Zvinotsigira GPRS / WIFI) | ||||
| Dziviriro | Kupfuura | Kupfuura | |||
| Kuisa nzira | Rack / Wall-Yakakwidzwa | Rack | |||
| Mutsara unouya | Kudzokera Kuuya (Rack Type), Upper Kuuya (Wall-Yakakwira) | Back iningcome mutsara | |||
| Danho redziviriro | IP20 | ||||

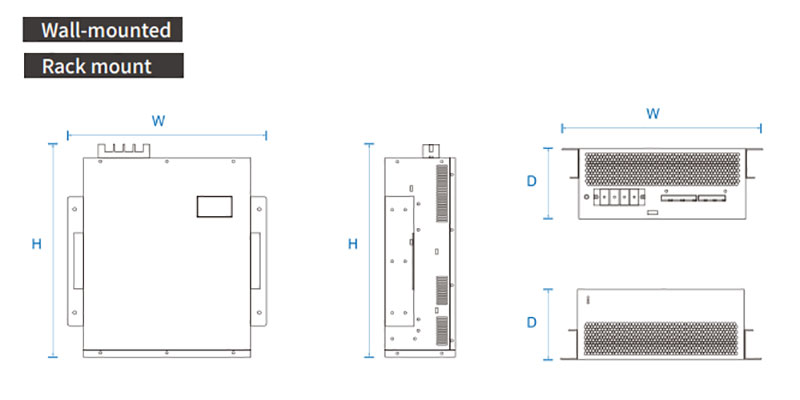

Model & Kufunga:
| Models | ||||
|---|---|---|---|---|
| Model nhamba | Rated zvazvino (a) | Sistimu Voltage (v) | Zvidimbu (D * W * H) | Nzira inotonhorera |
| GY APF-0.22-25A / 2L-R / W | 25 | 220 | 220 * 330 * 160mm | Kumanikidzwa mweya kutonhora |
| GY APF-0.4-25A / 4L-R / W | 25 | 380 × 20% | 460 * 490 * 89mm | |
| GY APF-0.4-50A / 4L-R / W | 50 | 380 × 20% | 460 * 490 * 89mm | |
| GY APF-0.4-75A / 4L-R / W | 75 | 380 × 20% | 500 * 510 * 190mm | |
| GY APF-0.4-100A / 4L-R / W | 100 | 380 × 20% | 500 * 550 * 240mm | |
| GY APF-0.4-150A / 4L-R / W | 150 | 380 × 20% | 500 * 550 * 240mm | |
| GY APF-0.5-100A / 4L-R / W | 100 | 500 × 20% | 495 * 675 * 275mm | |
| GY APF-0.69-100A / 4L-R / W | 100 | 690 × 20% | 495 * 675 * 275mm | |
Sravana Sameeralu Serial 4th Hot Tags: Single-phose rack gomo rinoshanda harisic filter
