500V Rack Mount inoshanda Acarimoni Filter
Kutsvaga yakavimbika 500V Rack Mount Use Active Alatonic Filter? Galla inopa mhinduro dzakakwirira-dzemhando yepamusoro pamitengo yehumwe, yakagadzirirwa kusangana nezvinodiwa nezvevashandiswi nekukurumidza. Mafirita edu anove anoona kushanda kwakakwana uye kushanda zvakanaka. Taura nesu izvozvi kuti uwane rumwe ruzivo uye kuti uwane iyo yakanyanya kubata zvakananga kubva kune yedu fekitori!
Iyo 500V Rack COUNT Active Harmonic Filter (ahf) inopa mhinduro yeHarmonic mu 500v (× 20%) matatu (3P4W) uye matatu-tatu-waya (3P3W) masisitimu emasimba. Iyi Rack-yakakwira unit inoshandira DPPI + CPLD Dijit Control uye matatu-mwero-time topology yePreise Hurmonic Pururiti kusvika kune 50th Harmonic. Yayo Modular Dhizaini Inofambisa Scabalability kuburikidza neyakafanana kubatana, kugonesa yepamusoro mukana kana uchirerutsa kuchengetedza. Iyo 100A yakarongedzwa yazvino mhando inobudirira kero yekusawirirana neHarmonic kukanganisa mune yakakwirira-voltage application. Kumanikidzwa kutonhora kwemhepo kunoita kuti kuvimbika, kwenguva refu kushanda. Iyo 500V Rack Gomo inoshanda ACROPONIC Filter inopa yakasarudzika masimba emhando yepamusoro maneja ekuda maindasitiri endustrial nharaunda.
For mod tsanangudzo:
| GY | Ahf | 0.5 | 100a | / | 4l | R |
| Enterprise kodhi | Active Harmonic Filter | Voltage level 0.5: 500V】 20% |
Rated Capacity (KVAR) 100A | 3L: Matanho matatu-matatu-waya 4l: nhatu-chikamu ina-waya |
R: Rack Gomo |
Zvimiro:
● Shandisa DPLLI + CPLD Tese Dhijitari Control Core, matatu-level Topology Tekinoroji, Advanced Kuwanikwa Algorithm uye PWM Control Trategy Kuwana Kubhadharwa Kwechokwadi kweHarmonic Yazvino.
● Kutora modular dhizaini, iyo inofambisa yakaenzana yekubatanidza module yakawanda, inotora nzvimbo diki uye iri nyore kuchengetedza.
● Kugadzirwa kwechimiro kwemweya wakazvimirira madhiri uye warechi akazvimirira anosimbisa kushanda kwakasimba kwemidziyo.
.
● Iyo Harmonic firiting rate yakakwira. Kana kugona kuchitendera, iyo Harmonic ikozvino kuwanda kweiyo rate inogona kuve yakakwira se 95%. Seta 100% yazvino kudzikisira kuburitsa kuti ive nechokwadi chekutenderera kwenguva refu yekushanda kwemidziyo.
Zvishandiso:
500V Rack Mount Active Harmonic mafirita akakosha pakuchengeta simba remhando uye zvishandiso kuvimbika mune dzakasiyana-siyana-voltage zvinyorwa:
● Indasitiri inorema:Kuderedza kusawirirana kunogadzirwa nevakuru vemauto, VFD, uye zvimwe zvisiri-mitsara mitoro mukuda maindasitiri maindasitiri.
● Inovandudza simba masisitimu:Simbisa kubuda kwemagetsi kubva kuMalar nemhepo mapurazi akabatana neGrids yakakwira.
● Mafuta negesi:Kuona kuvimbika kuvimbika kwemidziyo inotsoropodza mune yakakwirira-voltage simba rekugovera masisitimu.
● Mining Mashandiro:Kuchengetedza mitsipa inonaka yemagetsi uye kuchengetedza simba mhando munzvimbo dzine njodzi.
500V RAKI YAKADZIDZWA DZESVONDO DZESVONDO DZESVONDO DZINOGONESA DZESVONDO DZESVONDO DZEMAHARA
Technical parameter:
| 220V Series | 380V Series | 500V Series | 690V Series | ||
| Altitude | <2000m, pamusoro 2000m, funga maererano neGB / T3859.2 | ||||
| Ambient tembiricha | -20 ~ + 50 ℃ | ||||
| Hunyoro Hunyoro | ≤90%, hapana concensation pane iyo nzvimbo kana iyo mwedzi madiki tembiricha iri 25 ℃ | ||||
| Kusvibisa level | Level iii pazasi | ||||
| Inoshanda voltage | Ac220V ± 20% | Ac380V ± 20% | Ac500v】 20% | Ac690V ± 20% | |
| Kushanda frequency | 50hz ± 5% | ||||
| Muripo wazvino | 25a | 25/50/75/100 / 150a | 100a | 100a | |
| Grid chimiro | L / n | 3P3W / 3P4W | 3P3W / 3P4W | 3P3W / 3P4W | |
| Nhamba yezvikamu yakabatana mukufananidza |
Ulimited | ||||
| Kuwedzeredza Kwemuchina Kubudirira | ≥97% | ||||
| Grid chimiro | 32khz | 16khz | 12.8khz | 12.8khz | |
| Kuroverwa Range | 2 ~ 50times, imwe chete yekushambadzira chiyero chinogadziriswa | ||||
| Sarudzo yekusarudzwa | Simba Resimba | Inoshanda simba, simba rinogadzirisa + asymmetry | |||
| Simba Resimba Rwiyo rwekutsiva |
≥95% | > 92% | |||
| Neutral Kucheka kugona |
Neutral mutsetse wekushandura kugona ndeye 3 times ayo ekuchinjika kwechikamu chekugona | ||||
| Nguva yakazara yekupindura | <10ms | <40ms | <40ms | <40ms | |
| Ruzha | ≤60db | ≤60db | ≤65DB | ≤65DB | |
| Dzora nzira | 2-Nzira yeRs 485 interface (Zvinotsigira GPRS / WIFI) | ||||
| Dziviriro | Kupfuura | Kupfuura | |||
| Kuisa nzira | Rack / Wall-Yakakwidzwa | Rack | |||
| Mutsara unouya | Kudzokera Kuuya (Rack Type), Upper Kuuya (Wall-Yakakwira) | Back iningcome mutsara | |||
| Danho redziviriro | IP20 | ||||

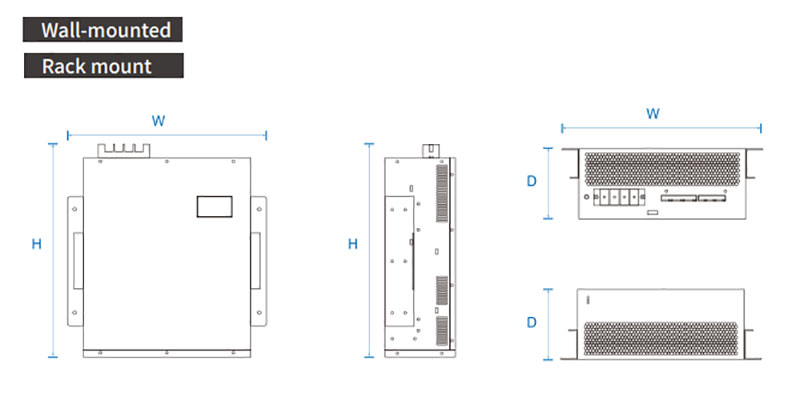

Model & Kufunga:
| Models | ||||
|---|---|---|---|---|
| Model nhamba | Rated zvazvino (a) | Sistimu Voltage (v) | Zvidimbu (D * W * H) | Nzira inotonhorera |
| GY APF-0.22-25A / 2L-R / W | 25 | 220 | 220 * 330 * 160mm | Kumanikidzwa mweya kutonhora |
| GY APF-0.4-25A / 4L-R / W | 25 | 380 × 20% | 460 * 490 * 89mm | |
| GY APF-0.4-50A / 4L-R / W | 50 | 380 × 20% | 460 * 490 * 89mm | |
| GY APF-0.4-75A / 4L-R / W | 75 | 380 × 20% | 500 * 510 * 190mm | |
| GY APF-0.4-100A / 4L-R / W | 100 | 380 × 20% | 500 * 550 * 240mm | |
| GY APF-0.4-150A / 4L-R / W | 150 | 380 × 20% | 500 * 550 * 240mm | |
| GY APF-0.5-100A / 4L-R / W | 100 | 500 × 20% | 495 * 675 * 275mm | |
| GY APF-0.69-100A / 4L-R / W | 100 | 690 × 20% | 495 * 675 * 275mm | |
